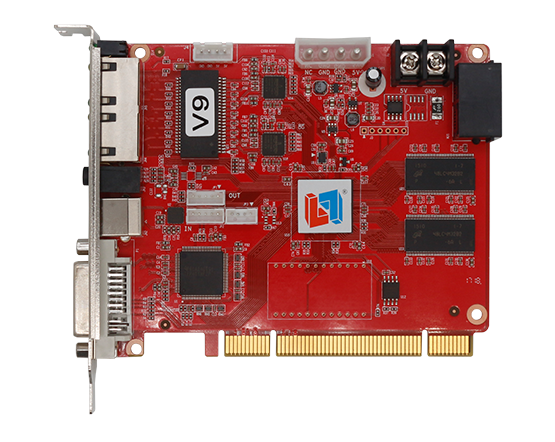

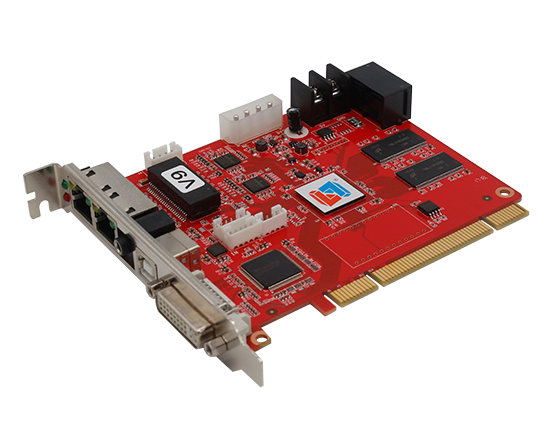

Synchronization system — V9
Adopt the general DVI digital interface
no need external serial cable or audio cable
set the parameters and audio transmission manually
- Product Introduction
- Related Download
-
Product Parameters
Type
Full-color sync control system
Scan
Support Static to 1/32 scan, compatible with mainstream driver IC
Control Range
Double net output ports, user-defined width and height ( the highest & widest can be 2048 pixels);
60HZ output resolution up to 1.3 million pixels;
30HZ output resolution up to 2.0 million pixels;
Supply Voltage
5V
Control Mode
USB interface control
Video Interface
DVI
Audio Interface
3.5mm
Output Interface
Double net ports
Cascade Interface
RJ11（out & in）
Auxiliary Receiving Card
V301 Series
Working Temperature
-40℃- 85℃
Software
LED SyncPlayer
